Al1Sb1
MatHub2d-29-Al1Sb1
| Property | Value |
|---|---|
| Space group | (156, 'P3m1') |
| Crystal system | hexagonal |
| Magnetic | No |

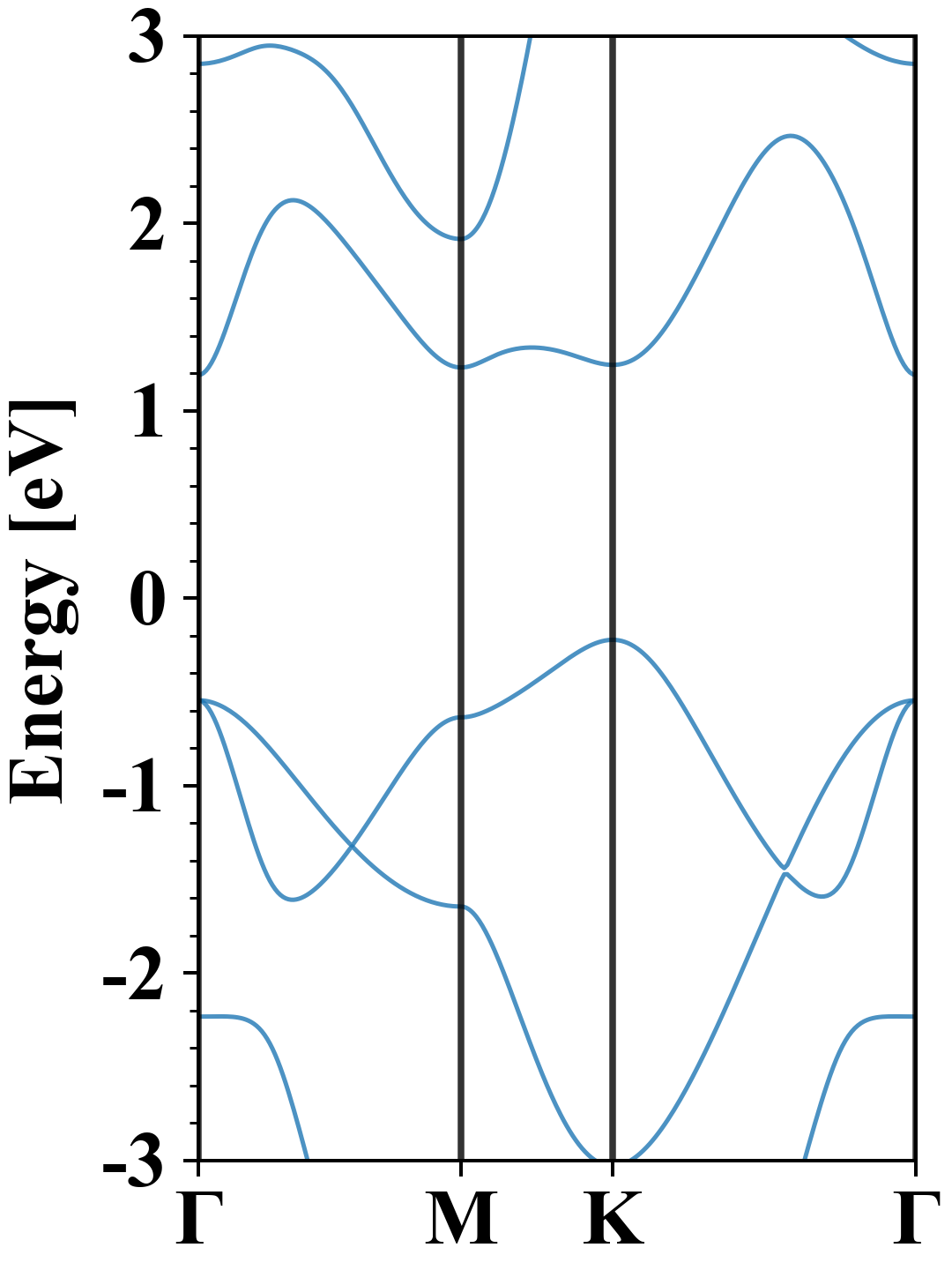

| Band gap (PBE) (eV) | 1.41 |
| Free energy (eV) | -7.266 |
| Free energy / atom (eV) | -3.633 |
| a, b, c (Å): | 4.394 | 4.394 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 120.000 |
| a, b, c (Å): | 4.402 | 4.402 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 120.000 |
Al1Sb1
Al1Sb1
| Property | Value |
|---|---|
| Band gap | 1.41 eV |
| E-fermi | -3.634 eV |

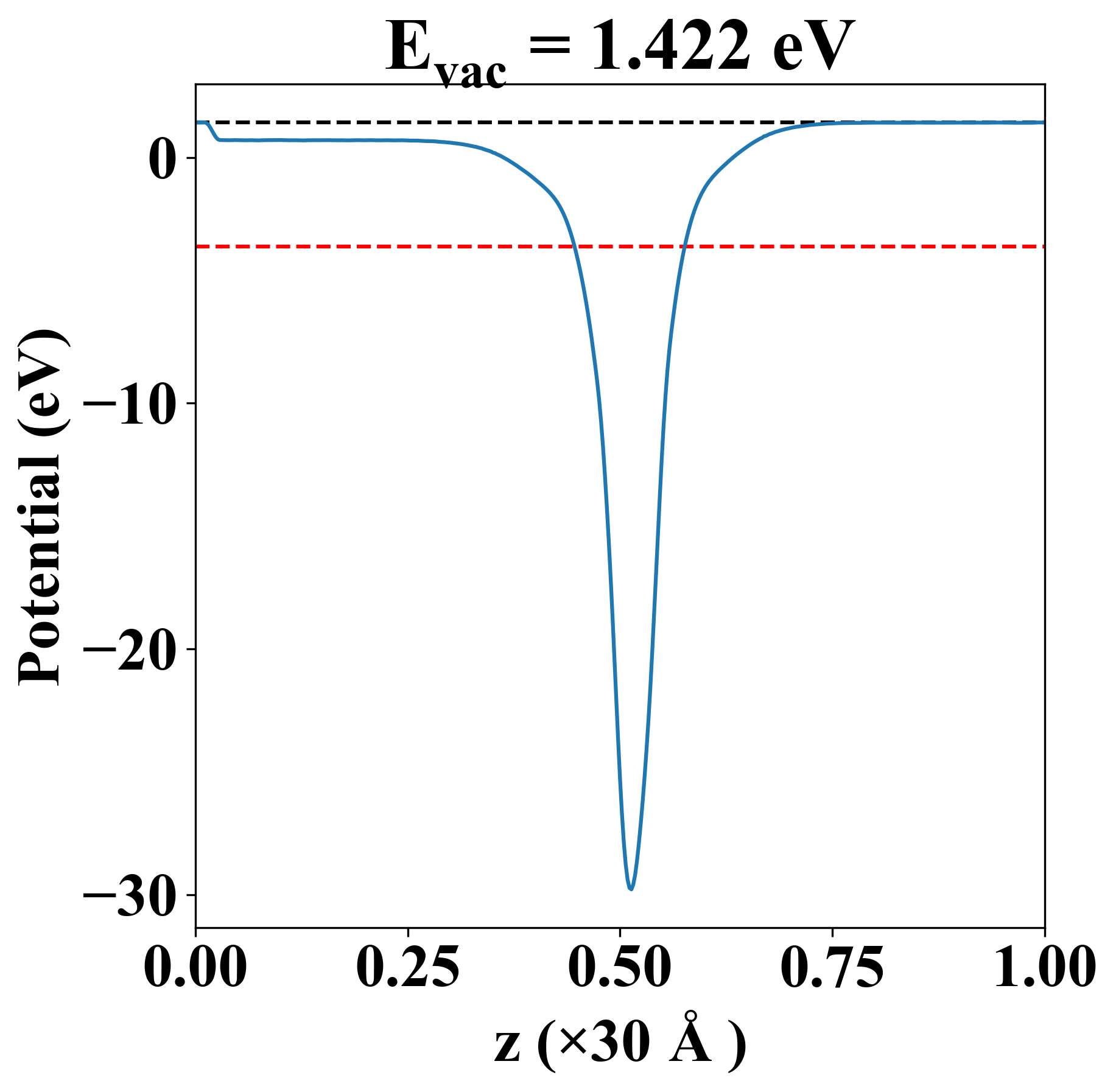

| Vacuum level | 1.422 eV |
| VBM | -3.856 eV |
| CBM | -2.443 eV |
| Work function | 5.056 eV |
| Cij (N/m) | xx | yy | xy |
| xx | 38.951 | 13.922 | 0.000 |
| yy | 13.922 | 38.951 | -0.000 |
| xy | 0.000 | -0.000 | 12.514 |
| Phonon mode at Γ point (THz) |
|---|
| 0.000 |
| 0.001 |
| 0.001 |
| 4.422 |
| 10.051 |
| 10.051 |

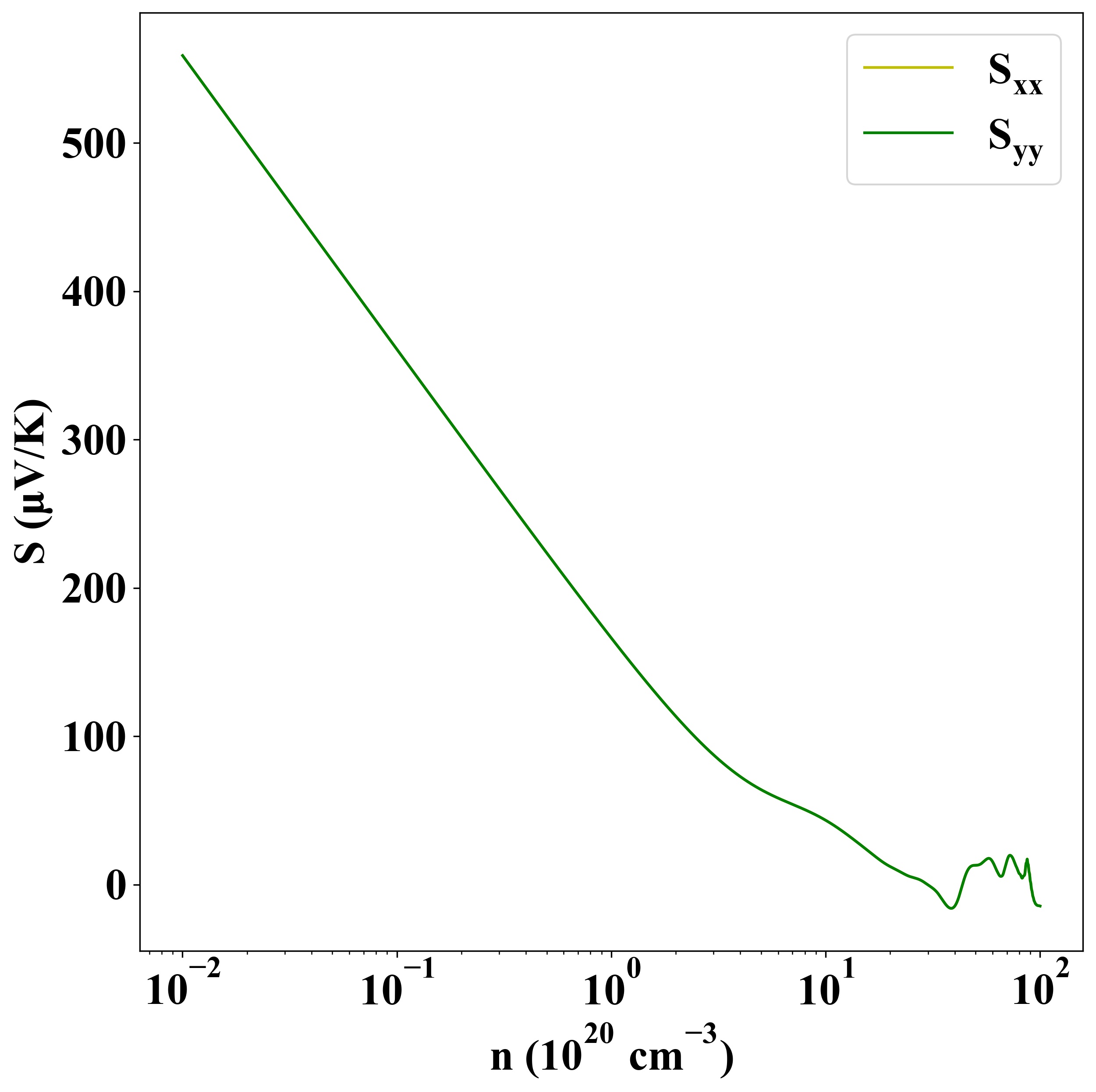

Seebeck
p-type

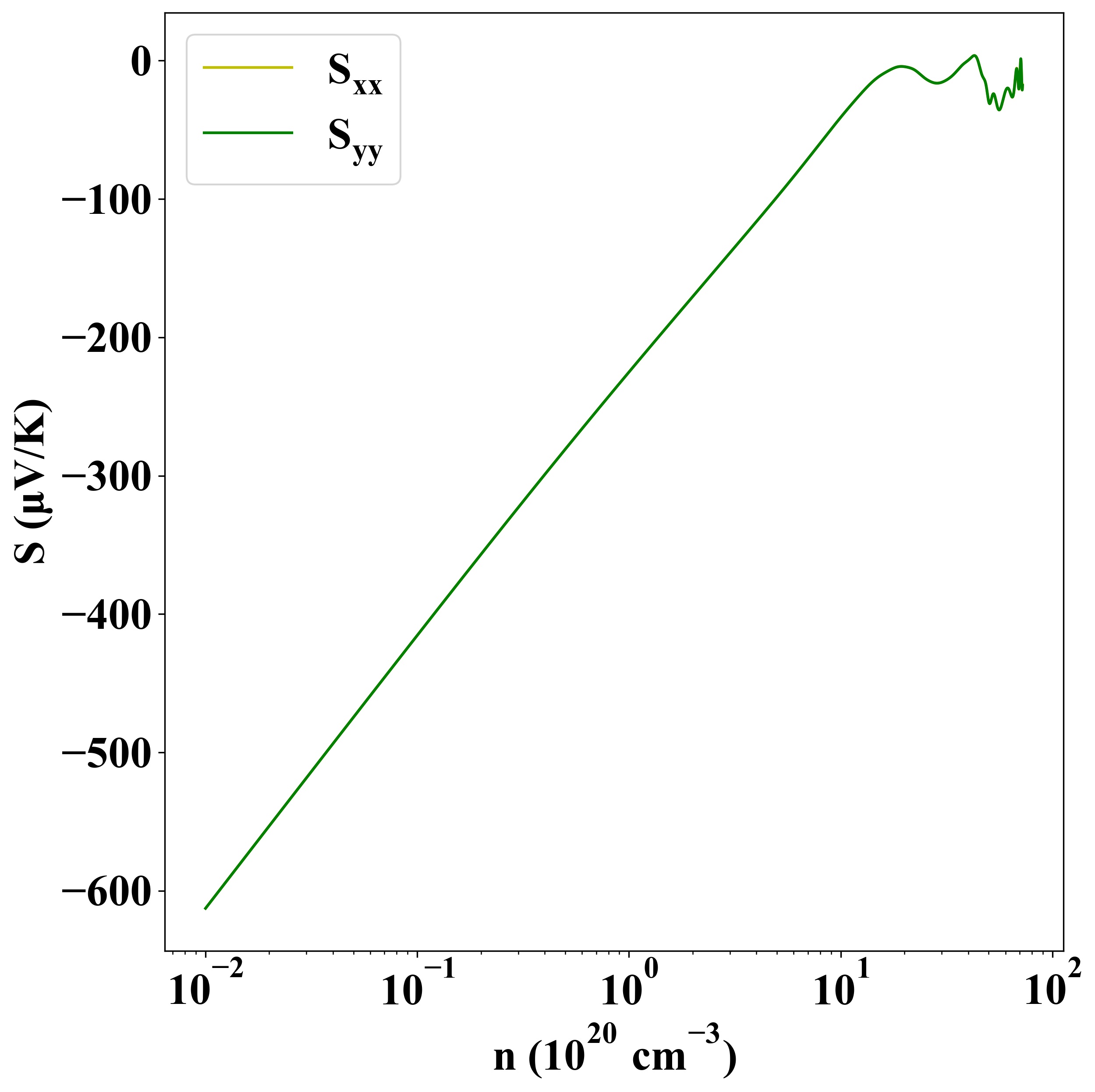

n-type

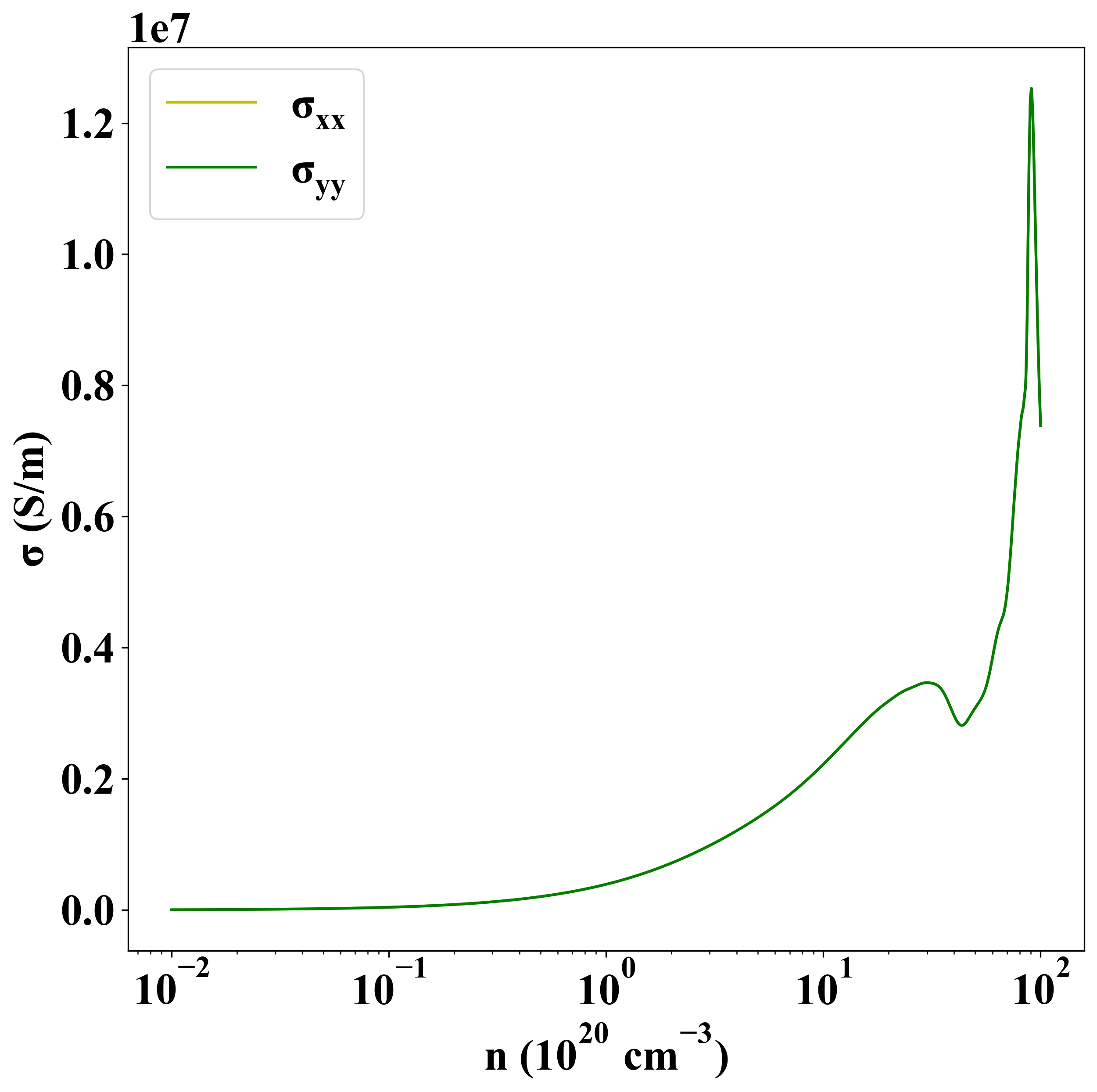

Sigma
p-type
n-type
| Property | Value |
|---|---|
| from where | c2db-677 |
