Br2In2N2
MatHub2d-1199-Br2In2N2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-23.740 |
| Free energy / atom (eV) |
-3.957 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.660 | 3.988 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.646 | 3.981 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-3.676 eV |

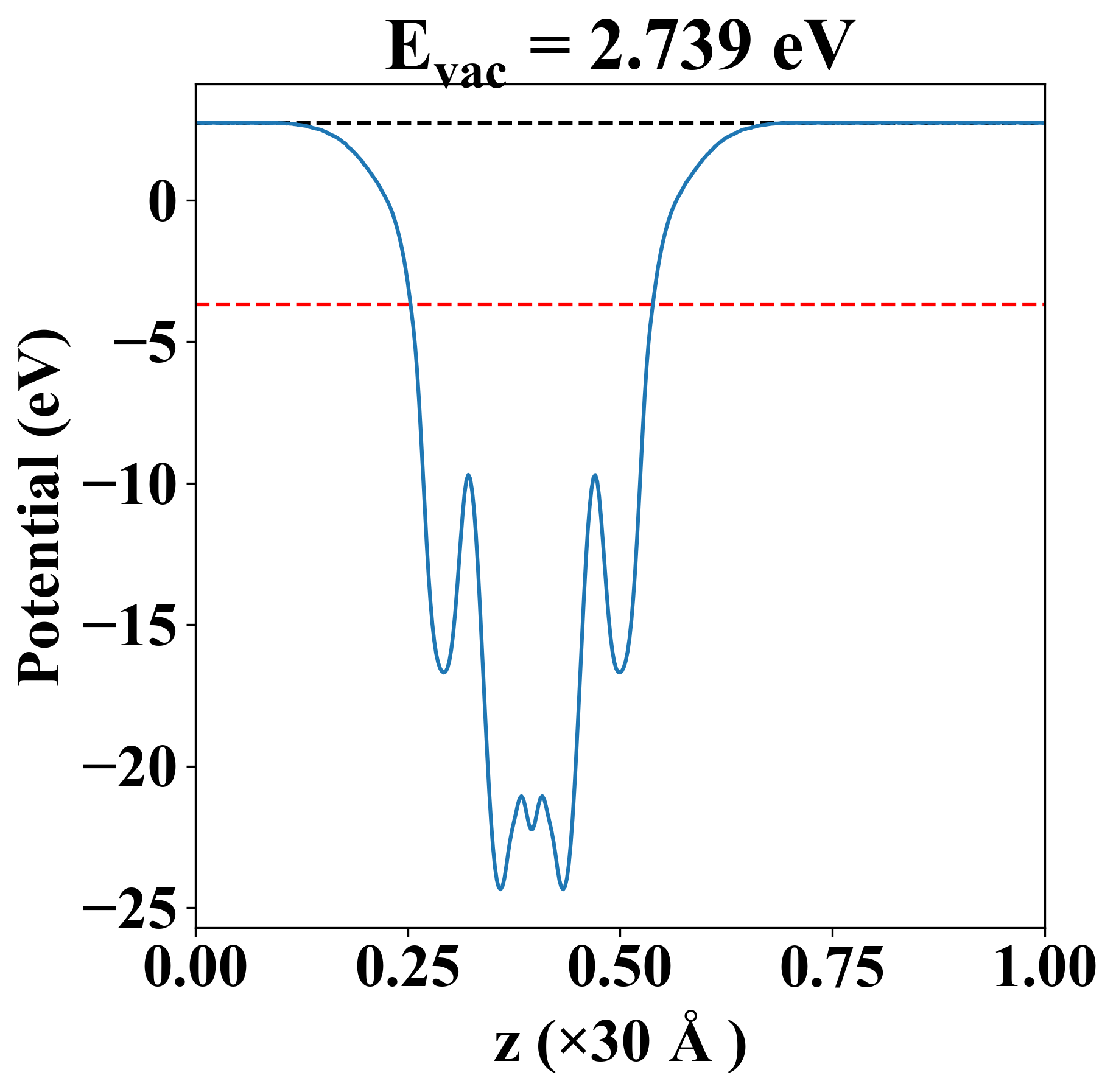

| Vacuum level |
2.739 eV |
| VBM |
-3.677 eV |
| CBM |
-3.674 eV |
| Work function |
6.415 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-3.676 eV |
| Vacuum level |
2.739 eV |
| VBM |
-3.677 eV |
| CBM |
-3.674 eV |
| Work function |
6.415 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
99.465 |
21.927 |
0.000 |
| yy |
21.927 |
63.028 |
0.000 |
| xy |
0.000 |
0.000 |
-6.464 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-172 |
