Cl2Pt2S2
MatHub2d-1394-Cl2Pt2S2
| Property |
Value |
| Space group |
(59, 'Pmmn') |
| Crystal system |
rectangular |
| Magnetic |
No |
| Band gap (PBE) (eV) |
0.00 |
| Free energy (eV) |
-22.470 |
| Free energy / atom (eV) |
-3.745 |
Lattice Parameters (basic)
| a, b, c (Å): | 3.468 | 5.284 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
Lattice Parameters (computed)
| a, b, c (Å): | 3.448 | 5.236 | 30.000 |
| α, β, γ (°): | 90.000 | 90.000 | 90.000 |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-2.783 eV |

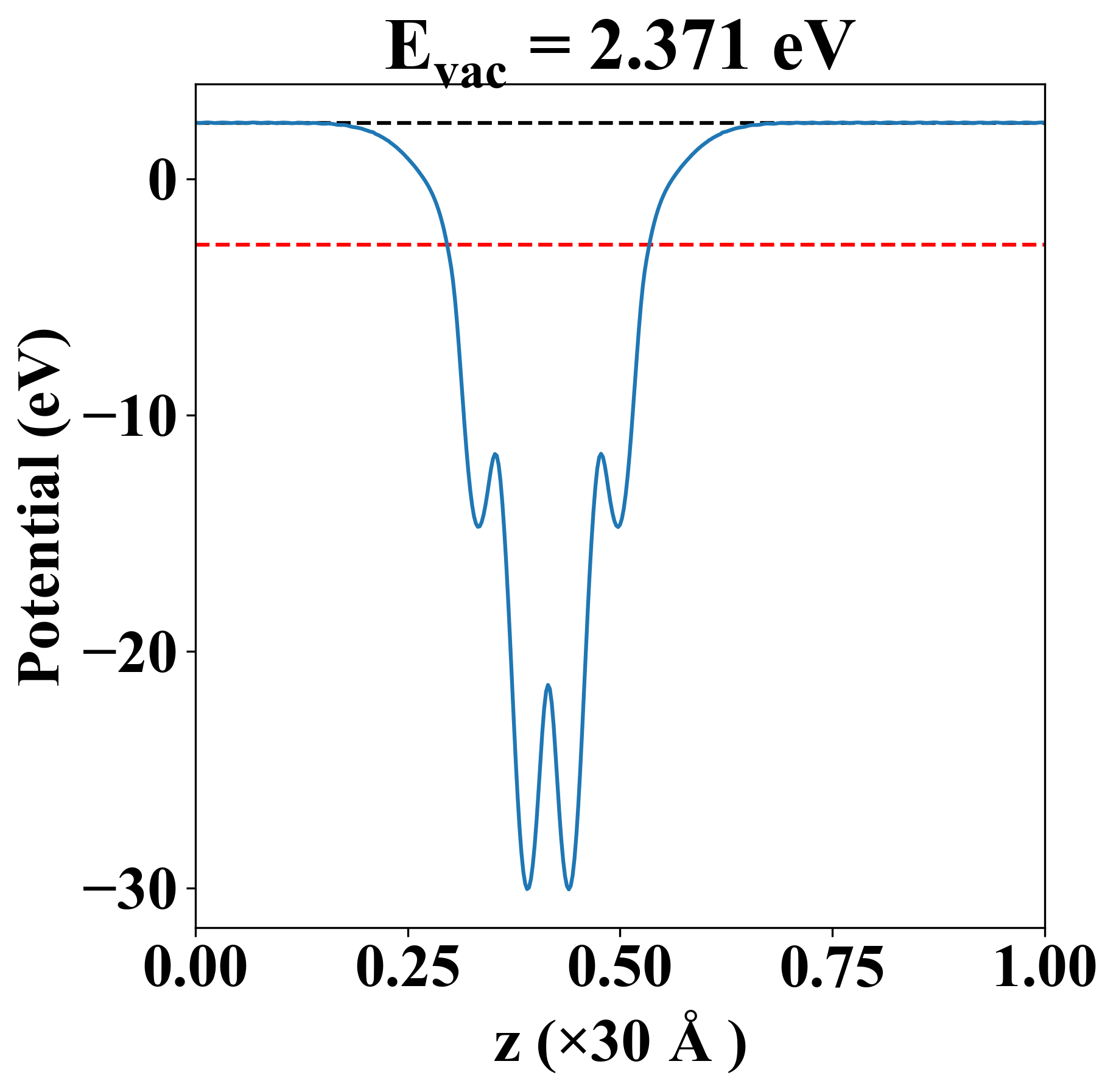

| Vacuum level |
2.371 eV |
| VBM |
-2.796 eV |
| CBM |
-2.775 eV |
| Work function |
5.154 eV |
| Direct gap |
No |
| Property |
Value |
| Band gap |
0.00 eV |
| E-fermi |
-2.783 eV |
| Vacuum level |
2.371 eV |
| VBM |
-2.796 eV |
| CBM |
-2.775 eV |
| Work function |
5.154 eV |
| Cij (N/m) |
xx |
yy |
xy |
| xx |
88.215 |
10.080 |
0.000 |
| yy |
10.080 |
74.199 |
0.000 |
| xy |
0.000 |
0.000 |
13.272 |
| Phonon mode at Γ point (THz) |
| Property |
Value |
| from where |
c2db-307 |
